4.1/9.5 Mini DIN Male to 4.1/9.5 Mini DIN
Male Adapter IP67 UnMated

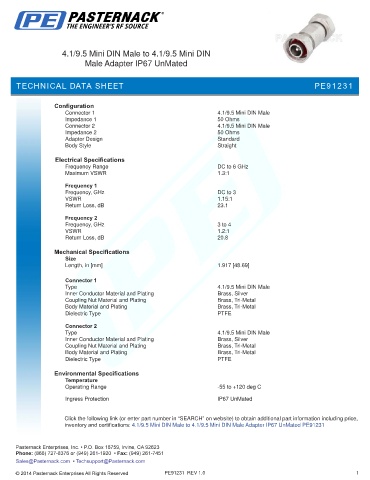

TECHNICAL DATA SHEET PE91231

Configuration
Connector 1 4.1/9.5 Mini DIN Male
Impedance 1 50 Ohms
Connector 2 4.1/9.5 Mini DIN Male
Impedance 2 50 Ohms
Adapter Design Standard
Body Style Straight

Electrical Specifications
Frequency Range DC to 6 GHz
Maximum VSWR 1.3:1

Frequency 1
Frequency, GHz DC to 3
VSWR 1.15:1
Return Loss, dB 23.1
Frequency 2
Frequency, GHz 3 to 4
VSWR 1.2:1
Return Loss, dB 20.8

Mechanical Specifications
Size
Length, in [mm] 1.917 [48.69]
.
Connector 1
Type 4.1/9.5 Mini DIN Male
Inner Conductor Material and Plating Brass, Silver
Coupling Nut Material and Plating Brass, Tri-Metal
Body Material and Plating Brass, Tri-Metal
Dielectric Type PTFE
Connector 2
Type 4.1/9.5 Mini DIN Male
Inner Conductor Material and Plating Brass, Silver
Coupling Nut Material and Plating Brass, Tri-Metal
Body Material and Plating Brass, Tri-Metal
Dielectric Type PTFE

Environmental Specifications
Temperature
Operating Range -55 to +120 deg C

Ingress Protection IP67 UnMated

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 4.1/9.5 Mini DIN Male to 4.1/9.5 Mini DIN Male Adapter IP67 UnMated PE91231

PE91231 REV 1.0 1
