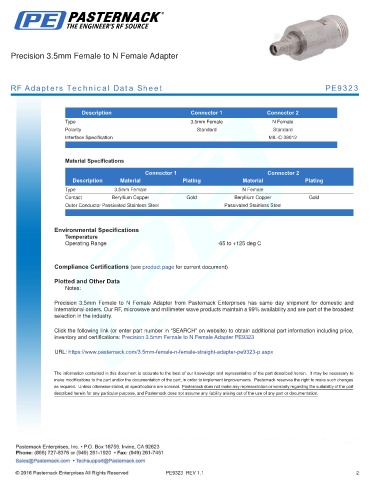

Precision 3.5mm Female to N Female Adapter

RF Adapters Technical Data Sheet PE9323

.
Description Connector 1 Connector 2
Type 3.5mm Female N Female
Polarity Standard Standard
Interface Specification MIL-C-39012
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type 3.5mm Female N Female
Contact Beryllium Copper Gold Beryllium Copper Gold
Outer Conductor Passivated Stainless Steel Passivated Stainless Steel
. .

Environmental Specifications
Temperature
Operating Range -65 to +125 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Precision 3.5mm Female to N Female Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest
selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision 3.5mm Female to N Female Adapter PE9323

URL: https://www.pasternack.com/3.5mm-female-n-female-straight-adapter-pe9323-p.aspx

PE9323 REV 1.1 2
