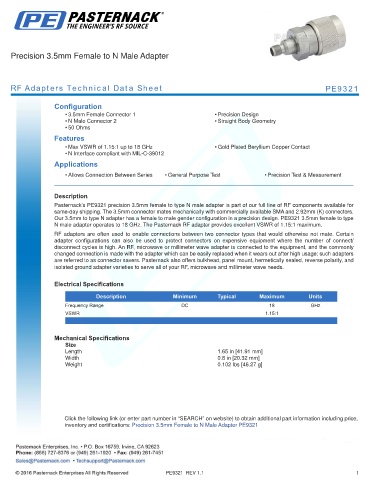

Precision 3.5mm Female to N Male Adapter

RF Adapters Technical Data Sheet PE9321

Configuration
• 3.5mm Female Connector 1 • Precision Design
• N Male Connector 2 • Straight Body Geometry
• 50 Ohms
Features
• Max VSWR of 1.15:1 up to 18 GHz • Gold Plated Beryllium Copper Contact
• N Interface compliant with MIL-C-39012
Applications
• Allows Connection Between Series • General Purpose Test • Precision Test & Measurement

.
Description
Pasternack’s PE9321 precision 3.5mm female to type N male adapter is part of our full line of RF components available for
same-day shipping. The 3.5mm connector mates mechanically with commercially available SMA and 2.92mm (K) connectors.
Our 3.5mm to type N adapter has a female to male gender configuration in a precision design. PE9321 3.5mm female to type
N male adapter operates to 18 GHz. The Pasternack RF adapter provides excellent VSWR of 1.15:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.15:1
. .

Mechanical Specifications
Size
Length 1.65 in [41.91 mm]
Width 0.8 in [20.32 mm]
Weight 0.102 lbs [46.27 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision 3.5mm Female to N Male Adapter PE9321

PE9321 REV 1.1 1
