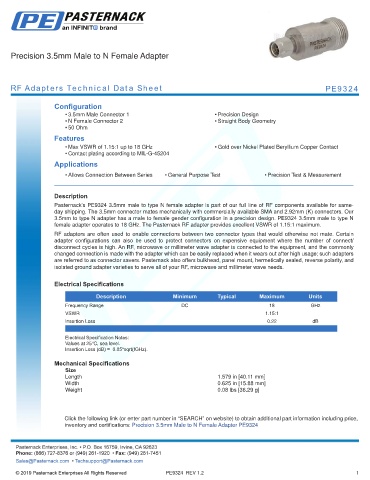

Precision 3.5mm Male to N Female Adapter

RF Adapters Technical Data Sheet PE9324

Configuration
• 3.5mm Male Connector 1 • Precision Design
• N Female Connector 2 • Straight Body Geometry
• 50 Ohm
Features
• Max VSWR of 1.15:1 up to 18 GHz • Gold over Nickel Plated Beryllium Copper Contact
• Contact plating according to MIL-G-45204
Applications
• Allows Connection Between Series • General Purpose Test • Precision Test & Measurement

.
Description
Pasternack’s PE9324 3.5mm male to type N female adapter is part of our full line of RF components available for same-
day shipping. The 3.5mm connector mates mechanically with commercially available SMA and 2.92mm (K) connectors. Our
3.5mm to type N adapter has a male to female gender configuration in a precision design. PE9324 3.5mm male to type N
female adapter operates to 18 GHz. The Pasternack RF adapter provides excellent VSWR of 1.15:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.15:1
Insertion Loss 0.22 dB
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Insertion Loss (dB) = 0.05*sqrt(fGHz).

Mechanical Specifications
Size
Length 1.579 in [40.11 mm]
Width 0.625 in [15.88 mm]
Weight 0.08 lbs [36.29 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision 3.5mm Male to N Female Adapter PE9324
-
