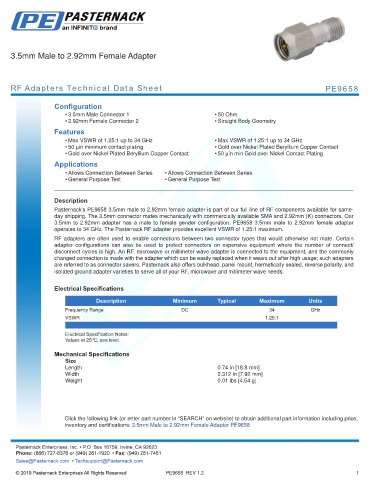

3.5mm Male to 2.92mm Female Adapter
RF Adapters Technical Data Sheet PE9658
Configuration
• 3.5mm Male Connector 1 • 50 Ohm
• 2.92mm Female Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.25:1 up to 34 GHz • Max VSWR of 1.25:1 up to 34 GHz
• 50 µin minimum contact plating • Gold over Nickel Plated Beryllium Copper Contact
• Gold over Nickel Plated Beryllium Copper Contact • 50 µin min Gold over Nickel Contact Plating
Applications
• Allows Connection Between Series • Allows Connection Between Series
• General Purpose Test • General Purpose Test
.
Description
Pasternack’s PE9658 3.5mm male to 2.92mm female adapter is part of our full line of RF components available for same-
day shipping. The 3.5mm connector mates mechanically with commercially available SMA and 2.92mm (K) connectors. Our
3.5mm to 2.92mm adapter has a male to female gender configuration. PE9658 3.5mm male to 2.92mm female adapter
operates to 34 GHz. The Pasternack RF adapter provides excellent VSWR of 1.25:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 34 GHz
VSWR 1.25:1
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Mechanical Specifications
Size
Length 0.74 in [18.8 mm]
Width 0.312 in [7.92 mm]
Weight 0.01 lbs [4.54 g]
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 3.5mm Male to 2.92mm Female Adapter PE9658
-
