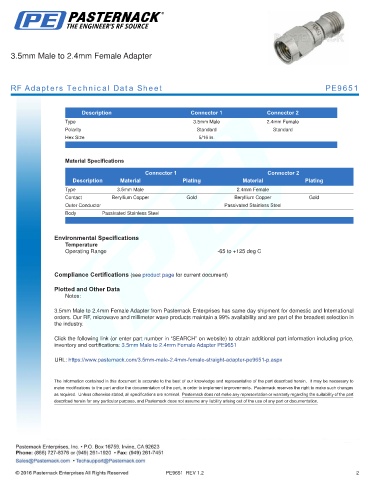

3.5mm Male to 2.4mm Female Adapter

RF Adapters Technical Data Sheet PE9651

.
Description Connector 1 Connector 2
Type 3.5mm Male 2.4mm Female
Polarity Standard Standard
Hex Size 5/16 in.
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type 3.5mm Male 2.4mm Female
Contact Beryllium Copper Gold Beryllium Copper Gold
Outer Conductor Passivated Stainless Steel
Body Passivated Stainless Steel
. .

Environmental Specifications
Temperature
Operating Range -65 to +125 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

3.5mm Male to 2.4mm Female Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in
the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 3.5mm Male to 2.4mm Female Adapter PE9651

URL: https://www.pasternack.com/3.5mm-male-2.4mm-female-straight-adapter-pe9651-p.aspx

PE9651 REV 1.2 2
