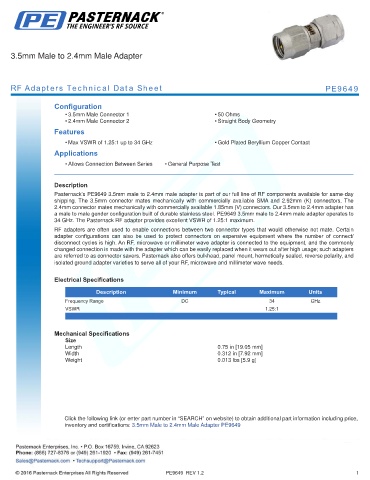

3.5mm Male to 2.4mm Male Adapter
RF Adapters Technical Data Sheet PE9649
Configuration
• 3.5mm Male Connector 1 • 50 Ohms
• 2.4mm Male Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.25:1 up to 34 GHz • Gold Plated Beryllium Copper Contact
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9649 3.5mm male to 2.4mm male adapter is part of our full line of RF components available for same-day
shipping. The 3.5mm connector mates mechanically with commercially available SMA and 2.92mm (K) connectors. The
2.4mm connector mates mechanically with commercially available 1.85mm (V) connectors. Our 3.5mm to 2.4mm adapter has
a male to male gender configuration built of durable stainless steel. PE9649 3.5mm male to 2.4mm male adapter operates to
34 GHz. The Pasternack RF adapter provides excellent VSWR of 1.25:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 34 GHz
VSWR 1.25:1
. .
Mechanical Specifications
Size
Length 0.75 in [19.05 mm]
Width 0.312 in [7.92 mm]
Weight 0.013 lbs [5.9 g]
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 3.5mm Male to 2.4mm Male Adapter PE9649
PE9649 REV 1.2 1
