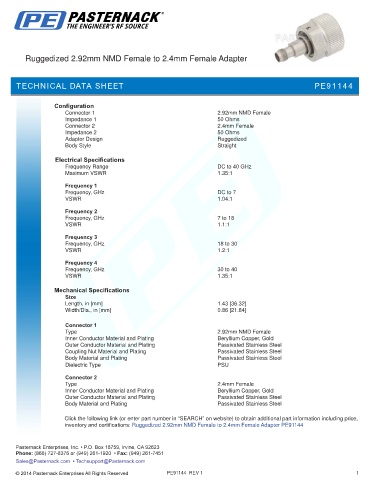

Ruggedized 2.92mm NMD Female to 2.4mm Female Adapter

TECHNICAL DATA SHEET PE91144

Configuration
Connector 1 2.92mm NMD Female
Impedance 1 50 Ohms
Connector 2 2.4mm Female
Impedance 2 50 Ohms
Adapter Design Ruggedized
Body Style Straight

Electrical Specifications
Frequency Range DC to 40 GHz
Maximum VSWR 1.35:1

Frequency 1
Frequency, GHz DC to 7
VSWR 1.04:1

Frequency 2
Frequency, GHz 7 to 18
VSWR 1.1:1
Frequency 3
Frequency, GHz 18 to 30
VSWR 1.2:1

Frequency 4
Frequency, GHz 30 to 40
VSWR 1.35:1

Mechanical Specifications
Size
Length, in [mm] 1.43 [36.32]
Width/Dia., in [mm] 0.86 [21.84]
.
Connector 1
Type 2.92mm NMD Female
Inner Conductor Material and Plating Beryllium Copper, Gold
Outer Conductor Material and Plating Passivated Stainless Steel
Coupling Nut Material and Plating Passivated Stainless Steel
Body Material and Plating Passivated Stainless Steel
Dielectric Type PSU

Connector 2
Type 2.4mm Female
Inner Conductor Material and Plating Beryllium Copper, Gold
Outer Conductor Material and Plating Passivated Stainless Steel
Body Material and Plating Passivated Stainless Steel

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Ruggedized 2.92mm NMD Female to 2.4mm Female Adapter PE91144

PE91144 REV 1 1
