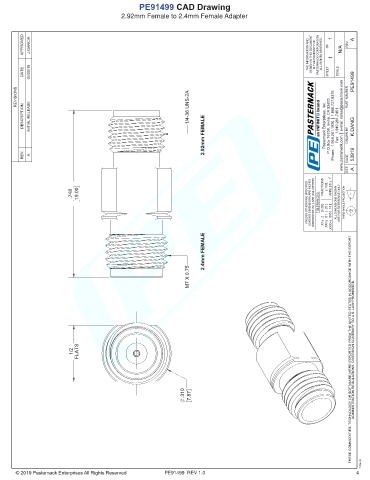

PE91499 CAD Drawing
2.92mm Female to 2.4mm Female Adapter
APPROVED J.GARCIA THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 1 N/A REV A
DATE 04/25/19 SHEET OF SCALE PE91499
REVISIONS PART NUMBER
DESCRIPTION INITIAL RELEASE 1/4-36 UNS-2A 2.92mm FEMALE Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY K.DANG
REV. A CAGE 53919 A
UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: ALL DIMENSIONS SHOWN
FRACTIONS ± 1/32 ANGLES ± 1° SIZE
.748 19.00
.2 [5.08] .X=± .01 [ .25 ] .XX=± .005 [ .13 ] .XXX=± ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION
2.4mm FEMALE
M7 X 0.75
FLATS THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.
1/2
.310 7.87
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
T-Rev.B
PE91499 REV 1.0 4
