2.92mm Male to Mini SMP Male Adapter Full Detent

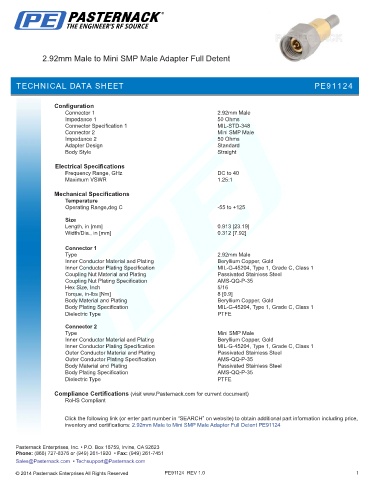

TECHNICAL DATA SHEET PE91124

Configuration
Connector 1 2.92mm Male
Impedance 1 50 Ohms
Connector Specification 1 MIL-STD-348
Connector 2 Mini SMP Male
Impedance 2 50 Ohms
Adapter Design Standard
Body Style Straight

Electrical Specifications
Frequency Range, GHz DC to 40
Maximum VSWR 1.25:1

Mechanical Specifications
Temperature
Operating Range,deg C -55 to +125

Size
Length, in [mm] 0.913 [23.19]
Width/Dia., in [mm] 0.312 [7.92]
.
Connector 1
Type 2.92mm Male
Inner Conductor Material and Plating Beryllium Copper, Gold
Inner Conductor Plating Specification MIL-G-45204, Type 1, Grade C, Class 1
Coupling Nut Material and Plating Passivated Stainless Steel
Coupling Nut Plating Specification AMS-QQ-P-35
Hex Size, Inch 5/16
Torque, in-lbs [Nm] 8 [0.9]
Body Material and Plating Beryllium Copper, Gold
Body Plating Specification MIL-G-45204, Type 1, Grade C, Class 1
Dielectric Type PTFE

Connector 2
Type Mini SMP Male
Inner Conductor Material and Plating Beryllium Copper, Gold
Inner Conductor Plating Specification MIL-G-45204, Type 1, Grade C, Class 1
Outer Conductor Material and Plating Passivated Stainless Steel
Outer Conductor Plating Specification AMS-QQ-P-35
Body Material and Plating Passivated Stainless Steel
Body Plating Specification AMS-QQ-P-35
Dielectric Type PTFE
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 2.92mm Male to Mini SMP Male Adapter Full Detent PE91124

PE91124 REV 1.0 1
