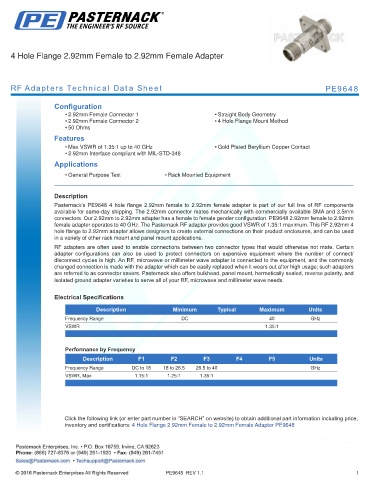

4 Hole Flange 2.92mm Female to 2.92mm Female Adapter

RF Adapters Technical Data Sheet PE9648

Configuration
• 2.92mm Female Connector 1 • Straight Body Geometry
• 2.92mm Female Connector 2 • 4 Hole Flange Mount Method
• 50 Ohms
Features
• Max VSWR of 1.35:1 up to 40 GHz • Gold Plated Beryllium Copper Contact
• 2.92mm Interface compliant with MIL-STD-348
Applications
• General Purpose Test • Rack Mounted Equipment

.
Description
Pasternack’s PE9648 4 hole flange 2.92mm female to 2.92mm female adapter is part of our full line of RF components
available for same-day shipping. The 2.92mm connector mates mechanically with commercially available SMA and 3.5mm
connectors. Our 2.92mm to 2.92mm adapter has a female to female gender configuration. PE9648 2.92mm female to 2.92mm
female adapter operates to 40 GHz. The Pasternack RF adapter provides good VSWR of 1.35:1 maximum. This RF 2.92mm 4
hole flange to 2.92mm adapter allows designers to create external connections on their product enclosures, and can be used
in a variety of other rack mount and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 40 GHz
VSWR 1.35:1
. .

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 18 18 to 26.5 26.5 to 40 GHz
VSWR, Max 1.15:1 1.25:1 1.35:1
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 4 Hole Flange 2.92mm Female to 2.92mm Female Adapter PE9648

PE9648 REV 1.1 1
