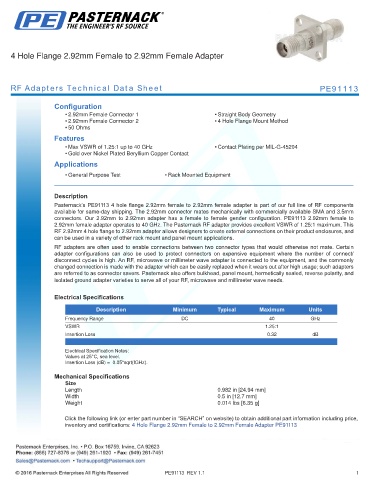

4 Hole Flange 2.92mm Female to 2.92mm Female Adapter

RF Adapters Technical Data Sheet PE91113

Configuration
• 2.92mm Female Connector 1 • Straight Body Geometry
• 2.92mm Female Connector 2 • 4 Hole Flange Mount Method
• 50 Ohms
Features
• Max VSWR of 1.25:1 up to 40 GHz • Contact Plating per MIL-G-45204
• Gold over Nickel Plated Beryllium Copper Contact
Applications
• General Purpose Test • Rack Mounted Equipment

.
Description
Pasternack’s PE91113 4 hole flange 2.92mm female to 2.92mm female adapter is part of our full line of RF components
available for same-day shipping. The 2.92mm connector mates mechanically with commercially available SMA and 3.5mm
connectors. Our 2.92mm to 2.92mm adapter has a female to female gender configuration. PE91113 2.92mm female to
2.92mm female adapter operates to 40 GHz. The Pasternack RF adapter provides excellent VSWR of 1.25:1 maximum. This
RF 2.92mm 4 hole flange to 2.92mm adapter allows designers to create external connections on their product enclosures, and
can be used in a variety of other rack mount and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 40 GHz
VSWR 1.25:1
Insertion Loss 0.32 dB
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Insertion Loss (dB) = 0.05*sqrt(fGHz).

Mechanical Specifications
Size
Length 0.982 in [24.94 mm]
Width 0.5 in [12.7 mm]
Weight 0.014 lbs [6.35 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 4 Hole Flange 2.92mm Female to 2.92mm Female Adapter PE91113

PE91113 REV 1.1 1
