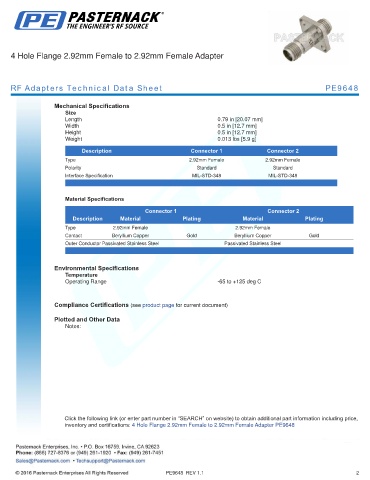

4 Hole Flange 2.92mm Female to 2.92mm Female Adapter

RF Adapters Technical Data Sheet PE9648

Mechanical Specifications
Size
Length 0.79 in [20.07 mm]
Width 0.5 in [12.7 mm]
Height 0.5 in [12.7 mm]
Weight 0.013 lbs [5.9 g]
.
Description Connector 1 Connector 2
Type 2.92mm Female 2.92mm Female
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type 2.92mm Female 2.92mm Female
Contact Beryllium Copper Gold Beryllium Copper Gold
Outer Conductor Passivated Stainless Steel Passivated Stainless Steel
. .

Environmental Specifications
Temperature
Operating Range -65 to +125 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 4 Hole Flange 2.92mm Female to 2.92mm Female Adapter PE9648

PE9648 REV 1.1 2
