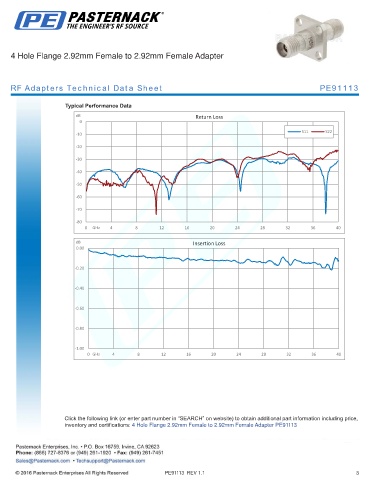

4 Hole Flange 2.92mm Female to 2.92mm Female Adapter

RF Adapters Technical Data Sheet PE91113

Typical Performance Data
dB Return Loss
0
S11 S22
-10

-20
-30

-40
-50

-60

-70
-80
0 GHz 4 8 12 16 20 24 28 32 36 40

dB Insertion Loss
0.00

-0.20

-0.40

-0.60

-0.80

-1.00
0 GHz 4 8 12 16 20 24 28 32 36 40

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 4 Hole Flange 2.92mm Female to 2.92mm Female Adapter PE91113

PE91113 REV 1.1 3
