2.92mm Female to 2.92mm Female Adapter

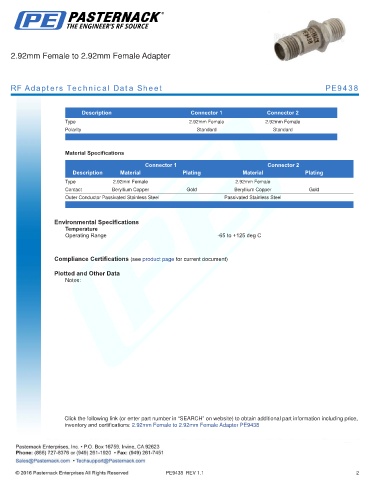

RF Adapters Technical Data Sheet PE9438

.
Description Connector 1 Connector 2
Type 2.92mm Female 2.92mm Female
Polarity Standard Standard
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type 2.92mm Female 2.92mm Female
Contact Beryllium Copper Gold Beryllium Copper Gold
Outer Conductor Passivated Stainless Steel Passivated Stainless Steel
. .

Environmental Specifications
Temperature
Operating Range -65 to +125 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 2.92mm Female to 2.92mm Female Adapter PE9438

PE9438 REV 1.1 2
