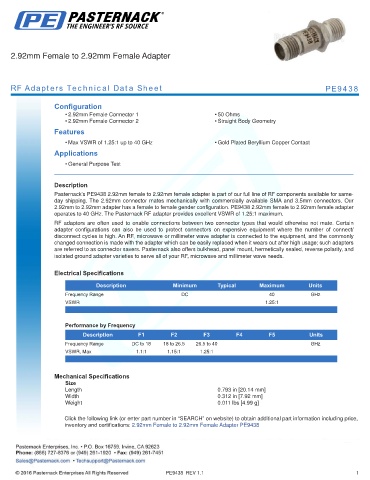

2.92mm Female to 2.92mm Female Adapter

RF Adapters Technical Data Sheet PE9438

Configuration
• 2.92mm Female Connector 1 • 50 Ohms
• 2.92mm Female Connector 2 • Straight Body Geometry
Features

• Max VSWR of 1.25:1 up to 40 GHz • Gold Plated Beryllium Copper Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE9438 2.92mm female to 2.92mm female adapter is part of our full line of RF components available for same-
day shipping. The 2.92mm connector mates mechanically with commercially available SMA and 3.5mm connectors. Our
2.92mm to 2.92mm adapter has a female to female gender configuration. PE9438 2.92mm female to 2.92mm female adapter
operates to 40 GHz. The Pasternack RF adapter provides excellent VSWR of 1.25:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 40 GHz
VSWR 1.25:1
. .

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 18 18 to 26.5 26.5 to 40 GHz
VSWR, Max 1.1:1 1.15:1 1.25:1
.

Mechanical Specifications
Size
Length 0.793 in [20.14 mm]
Width 0.312 in [7.92 mm]
Weight 0.011 lbs [4.99 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 2.92mm Female to 2.92mm Female Adapter PE9438

PE9438 REV 1.1 1
