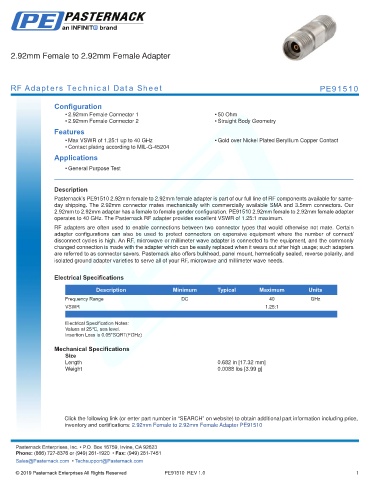

2.92mm Female to 2.92mm Female Adapter

RF Adapters Technical Data Sheet PE91510

Configuration
• 2.92mm Female Connector 1 • 50 Ohm
• 2.92mm Female Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.25:1 up to 40 GHz • Gold over Nickel Plated Beryllium Copper Contact
• Contact plating according to MIL-G-45204
Applications
• General Purpose Test
.
Description
Pasternack’s PE91510 2.92mm female to 2.92mm female adapter is part of our full line of RF components available for same-
day shipping. The 2.92mm connector mates mechanically with commercially available SMA and 3.5mm connectors. Our
2.92mm to 2.92mm adapter has a female to female gender configuration. PE91510 2.92mm female to 2.92mm female adapter
operates to 40 GHz. The Pasternack RF adapter provides excellent VSWR of 1.25:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 40 GHz
VSWR 1.25:1
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Insertion Loss is 0.05*SQRT(FGHz)

Mechanical Specifications
Size
Length 0.682 in [17.32 mm]
Weight 0.0088 lbs [3.99 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 2.92mm Female to 2.92mm Female Adapter PE91510
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE91510 REV 1.0 1
