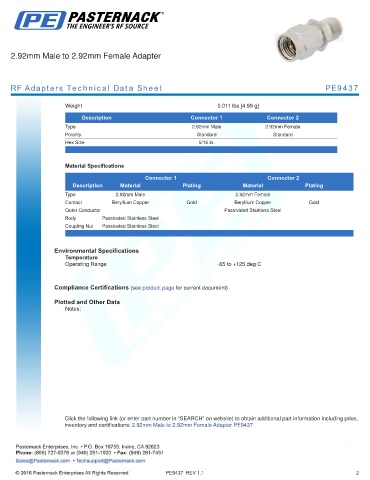

2.92mm Male to 2.92mm Female Adapter

RF Adapters Technical Data Sheet PE9437

Weight 0.011 lbs [4.99 g]
.
Description Connector 1 Connector 2
Type 2.92mm Male 2.92mm Female
Polarity Standard Standard
Hex Size 5/16 in.
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type 2.92mm Male 2.92mm Female
Contact Beryllium Copper Gold Beryllium Copper Gold
Outer Conductor Passivated Stainless Steel
Body Passivated Stainless Steel
Coupling Nut Passivated Stainless Steel
. .

Environmental Specifications
Temperature
Operating Range -65 to +125 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 2.92mm Male to 2.92mm Female Adapter PE9437
