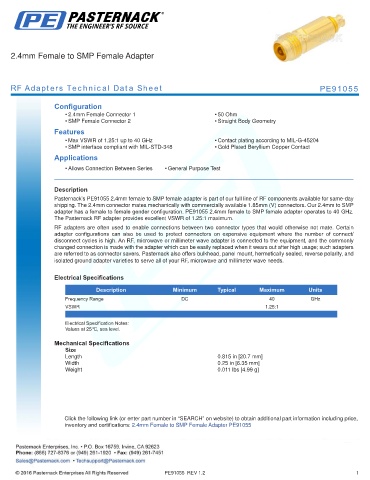

2.4mm Female to SMP Female Adapter
RF Adapters Technical Data Sheet PE91055
Configuration
• 2.4mm Female Connector 1 • 50 Ohm
• SMP Female Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.25:1 up to 40 GHz • Contact plating according to MIL-G-45204
• SMP interface compliant with MIL-STD-348 • Gold Plated Beryllium Copper Contact
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE91055 2.4mm female to SMP female adapter is part of our full line of RF components available for same-day
shipping. The 2.4mm connector mates mechanically with commercially available 1.85mm (V) connectors. Our 2.4mm to SMP
adapter has a female to female gender configuration. PE91055 2.4mm female to SMP female adapter operates to 40 GHz.
The Pasternack RF adapter provides excellent VSWR of 1.25:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 40 GHz
VSWR 1.25:1
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Mechanical Specifications
Size
Length 0.815 in [20.7 mm]
Width 0.25 in [6.35 mm]
Weight 0.011 lbs [4.99 g]
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 2.4mm Female to SMP Female Adapter PE91055
PE91055 REV 1.2 1
