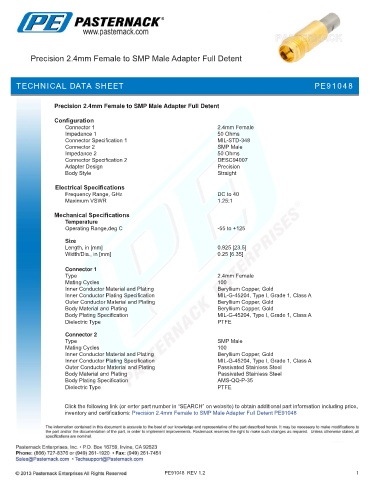

Precision 2.4mm Female to SMP Male Adapter Full Detent
TECHNICAL DATA SHEET PE91048
Precision 2.4mm Female to SMP Male Adapter Full Detent
Configuration
Connector 1 2.4mm Female
Impedance 1 50 Ohms
Connector Specification 1 MIL-STD-348
Connector 2 SMP Male
Impedance 2 50 Ohms
Connector Specification 2 DESC94007
Adapter Design Precision
Body Style Straight
Electrical Specifications
Frequency Range, GHz DC to 40
Maximum VSWR 1.25:1
Mechanical Specifications
Temperature
Operating Range,deg C -55 to +125
Size
Length, in [mm] 0.925 [23.5]
Width/Dia., in [mm] 0.25 [6.35]
.
Connector 1
Type 2.4mm Female
Mating Cycles 100
Inner Conductor Material and Plating Beryllium Copper, Gold
Inner Conductor Plating Specification MIL-G-45204, Type I, Grade 1, Class A
Outer Conductor Material and Plating Beryllium Copper, Gold
Body Material and Plating Beryllium Copper, Gold
Body Plating Specification MIL-G-45204, Type I, Grade 1, Class A
Dielectric Type PTFE
Connector 2
Type SMP Male
Mating Cycles 100
Inner Conductor Material and Plating Beryllium Copper, Gold
Inner Conductor Plating Specification MIL-G-45204, Type I, Grade 1, Class A
Outer Conductor Material and Plating Passivated Stainless Steel
Body Material and Plating Passivated Stainless Steel
Body Plating Specification AMS-QQ-P-35
Dielectric Type PTFE
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision 2.4mm Female to SMP Male Adapter Full Detent PE91048
PE91048 REV 1.2 1
