Precision 2.4mm Male to 7mm Sexless Adapter

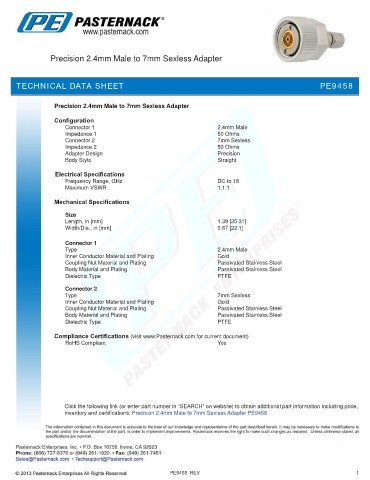

TECHNICAL DATA SHEET PE9458

Precision 2.4mm Male to 7mm Sexless Adapter

Configuration
Connector 1 2.4mm Male
Impedance 1 50 Ohms
Connector 2 7mm Sexless
Impedance 2 50 Ohms
Adapter Design Precision
Body Style Straight

Electrical Specifications
Frequency Range, GHz DC to 18
Maximum VSWR 1.1:1

Mechanical Specifications

Size
Length, in [mm] 1.39 [35.31]
Width/Dia., in [mm] 0.87 [22.1]
.
Connector 1
Type 2.4mm Male
Inner Conductor Material and Plating Gold
Coupling Nut Material and Plating Passivated Stainless Steel
Body Material and Plating Passivated Stainless Steel
Dielectric Type PTFE

Connector 2
Type 7mm Sexless
Inner Conductor Material and Plating Gold
Coupling Nut Material and Plating Passivated Stainless Steel
Body Material and Plating Passivated Stainless Steel
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision 2.4mm Male to 7mm Sexless Adapter PE9458

PE9458 REV 1
