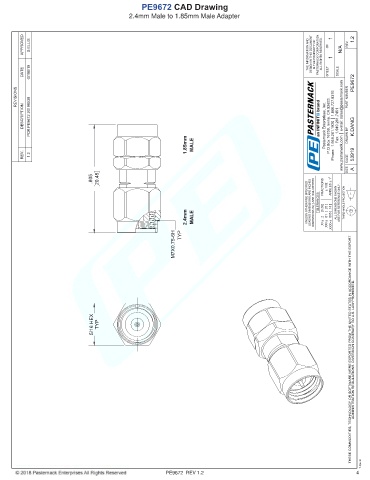

PE9672 CAD Drawing
2.4mm Male to 1.85mm Male Adapter
APPROVED S.ELLIS THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 1 N/A REV 1.2
DATE 07/08/19 SHEET OF SCALE PE9672
REVISIONS PART NUMBER
DESCRIPTION PCR PE9672 20190530 Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com K.DANG
1.85mm MALE DRAWN BY
REV. 1.2 CAGE 53919
SIZE A
.805 20.45
UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS ± 1/32 ANGLES ± 1° ALL DIMENSIONS SHOWN
2.4mm MALE .2 [5.08] .X=± .01 [ .25 ] .XX=± .005 [ .13 ] .XXX=± ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION
M7X0.75-6H TYP
5/16 HEX TYP THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.
T-Rev.B
PE9672 REV 1.2 4
