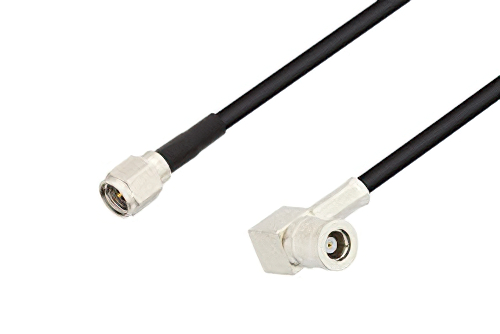

SMA Male to SMB Plug Right Angle Cable Using RG174 Coax
Product ID:
PE3W04476
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
Key Specifications
Key Specifications (Click on Data Sheet Above for Additional Details). |
Connector Series 1 | SMA |
Connector Gender 1 | Male |
Connector Polarity 1 | Standard |
Connector Angle 1 | Straight |
Connector Mount Method 1 | None |
Connector Impedance 1 | 50 Ohm |
Connector Series 2 | SMB |
Connector Gender 2 | Plug |
Connector Polarity 2 | Standard |
Connector Angle 2 | Right Angle |
Connector Mount Method 2 | None |
Connector Impedance 2 | 50 Ohm |
RF Cable Part Number | RG174A/U |
RF Cable Type | RG174 |
RF Cable Impedance | 50 Ohm |
Description
Click on the below images to access KitBOM product pages:
![](/images/product/medium/TC-100-SM.jpg) | ![](/images/product/medium/RG174A-U.jpg) | ![](/images/product/medium/PE4052.jpg) | ![](/images/webtools/configurator/kitbom_datasheets.png) |
---|
TC-100-SM | RG174A/U | PE4052 | KitBOM Datasheet |
---|
SMA Male to SMB Plug Right Angle Cable Using RG174 Coax
PE3W04476 is a SMA male to SMB plug right angle cable using RG174 coax. This Pasternack SMA male to SMB plug right angle cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SMB for connector 2. SMA to SMB right angle coaxial cable assembly uses 90 degree right angle coax cable connector.
Our male SMA to plug SMB right angle cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W04476 SMA male to SMB plug right angle cable assembly is constructed with RG174 coax.
