Precision 1.85mm Male to N Male Adapter

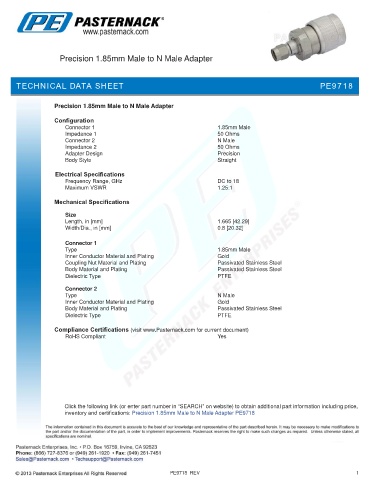

TECHNICAL DATA SHEET PE9718

Precision 1.85mm Male to N Male Adapter

Configuration
Connector 1 1.85mm Male
Impedance 1 50 Ohms
Connector 2 N Male
Impedance 2 50 Ohms
Adapter Design Precision
Body Style Straight

Electrical Specifications
Frequency Range, GHz DC to 18
Maximum VSWR 1.25:1

Mechanical Specifications

Size
Length, in [mm] 1.665 [42.29]
Width/Dia., in [mm] 0.8 [20.32]
.
Connector 1
Type 1.85mm Male
Inner Conductor Material and Plating Gold
Coupling Nut Material and Plating Passivated Stainless Steel
Body Material and Plating Passivated Stainless Steel
Dielectric Type PTFE

Connector 2
Type N Male
Inner Conductor Material and Plating Gold
Body Material and Plating Passivated Stainless Steel
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision 1.85mm Male to N Male Adapter PE9718

PE9718 REV 1
