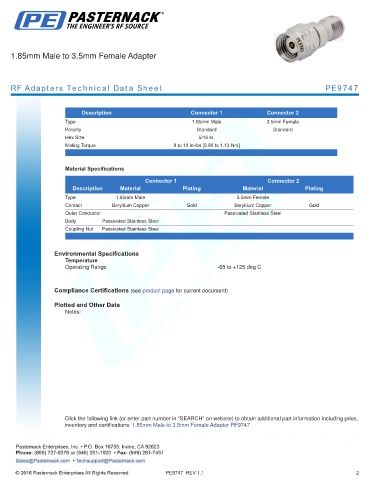

1.85mm Male to 3.5mm Female Adapter
RF Adapters Technical Data Sheet PE9747
.
Description Connector 1 Connector 2
Type 1.85mm Male 3.5mm Female
Polarity Standard Standard
Hex Size 5/16 in.
Mating Torque 8 to 10 in-lbs [0.90 to 1.13 Nm]
.
Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type 1.85mm Male 3.5mm Female
Contact Beryllium Copper Gold Beryllium Copper Gold
Outer Conductor Passivated Stainless Steel
Body Passivated Stainless Steel
Coupling Nut Passivated Stainless Steel
. .
Environmental Specifications
Temperature
Operating Range -65 to +125 deg C
.
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 1.85mm Male to 3.5mm Female Adapter PE9747
PE9747 REV 1.1 2
