Precision 1.85mm Male to N Female Adapter

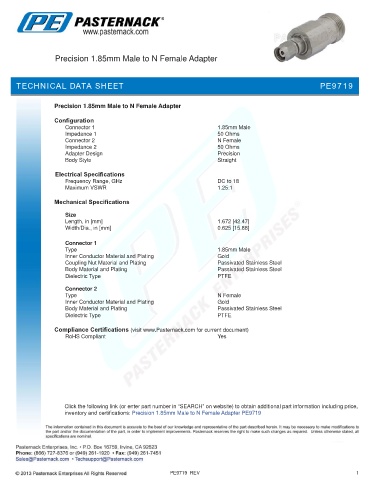

TECHNICAL DATA SHEET PE9719
Precision 1.85mm Male to N Female Adapter
Configuration
Connector 1 1.85mm Male
Impedance 1 50 Ohms
Connector 2 N Female
Impedance 2 50 Ohms
Adapter Design Precision
Body Style Straight
Electrical Specifications
Frequency Range, GHz DC to 18
Maximum VSWR 1.25:1
Mechanical Specifications
Size
Length, in [mm] 1.672 [42.47]
Width/Dia., in [mm] 0.625 [15.88]
.
Connector 1
Type 1.85mm Male
Inner Conductor Material and Plating Gold
Coupling Nut Material and Plating Passivated Stainless Steel
Body Material and Plating Passivated Stainless Steel
Dielectric Type PTFE
Connector 2
Type N Female
Inner Conductor Material and Plating Gold
Body Material and Plating Passivated Stainless Steel
Dielectric Type PTFE
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision 1.85mm Male to N Female Adapter PE9719
PE9719 REV 1
