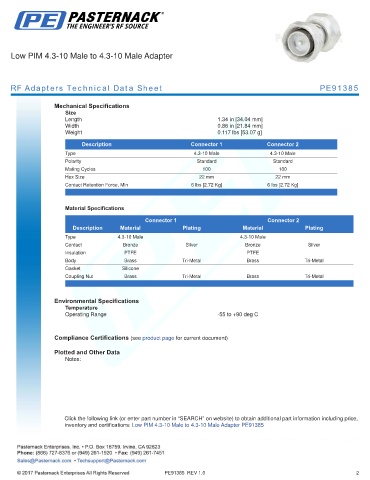

Low PIM 4.3-10 Male to 4.3-10 Male Adapter

RF Adapters Technical Data Sheet PE91385

Mechanical Specifications
Size
Length 1.34 in [34.04 mm]
Width 0.86 in [21.84 mm]
Weight 0.117 lbs [53.07 g]
.
Description Connector 1 Connector 2
Type 4.3-10 Male 4.3-10 Male
Polarity Standard Standard
Mating Cycles 100 100
Hex Size 22 mm 22 mm
Contact Retention Force, Min 6 lbs [2.72 Kg] 6 lbs [2.72 Kg]
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type 4.3-10 Male 4.3-10 Male
Contact Bronze Silver Bronze Silver
Insulation PTFE PTFE
Body Brass Tri-Metal Brass Tri-Metal
Gasket Silicone
Coupling Nut Brass Tri-Metal Brass Tri-Metal
. .

Environmental Specifications
Temperature
Operating Range -55 to +90 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Low PIM 4.3-10 Male to 4.3-10 Male Adapter PE91385

PE91385 REV 1.0 2
