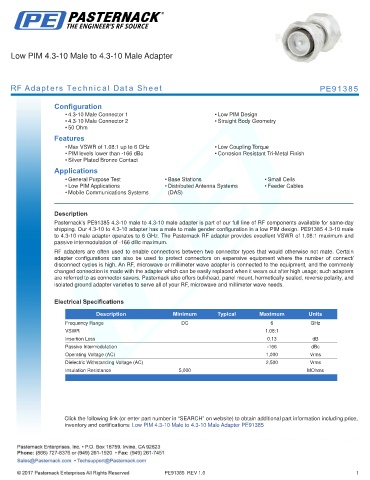

Low PIM 4.3-10 Male to 4.3-10 Male Adapter

RF Adapters Technical Data Sheet PE91385

Configuration
• 4.3-10 Male Connector 1 • Low PIM Design
• 4.3-10 Male Connector 2 • Straight Body Geometry
• 50 Ohm
Features
• Max VSWR of 1.08:1 up to 6 GHz • Low Coupling Torque
• PIM levels lower than -166 dBc • Corrosion Resistant Tri-Metal Finish
• Silver Plated Bronze Contact
Applications
• General Purpose Test • Base Stations • Small Cells
• Low PIM Applications • Distributed Antenna Systems • Feeder Cables
• Mobile Communications Systems (DAS)
.
Description
Pasternack’s PE91385 4.3-10 male to 4.3-10 male adapter is part of our full line of RF components available for same-day
shipping. Our 4.3-10 to 4.3-10 adapter has a male to male gender configuration in a low PIM design. PE91385 4.3-10 male
to 4.3-10 male adapter operates to 6 GHz. The Pasternack RF adapter provides excellent VSWR of 1.08:1 maximum and
passive intermodulation of -166 dBc maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.08:1
Insertion Loss 0.13 dB
Passive Intermodulation -166 dBc
Operating Voltage (AC) 1,000 Vrms
Dielectric Withstanding Voltage (AC) 2,500 Vrms
Insulation Resistance 5,000 MOhms
. .

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Low PIM 4.3-10 Male to 4.3-10 Male Adapter PE91385

PE91385 REV 1.0 1
