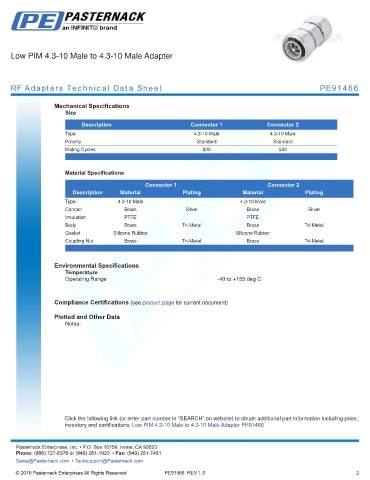

Low PIM 4.3-10 Male to 4.3-10 Male Adapter

RF Adapters Technical Data Sheet PE91466

Mechanical Specifications
Size
.
Description Connector 1 Connector 2
Type 4.3-10 Male 4.3-10 Male
Polarity Standard Standard
Mating Cycles 500 500
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type 4.3-10 Male 4.3-10 Male
Contact Brass Silver Brass Silver
Insulation PTFE PTFE
Body Brass Tri-Metal Brass Tri-Metal
Gasket Silicone Rubber Silicone Rubber
Coupling Nut Brass Tri-Metal Brass Tri-Metal
. .

Environmental Specifications
Temperature
Operating Range -40 to +155 deg C
.

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Low PIM 4.3-10 Male to 4.3-10 Male Adapter PE91466
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE91466 REV 1.0 2
