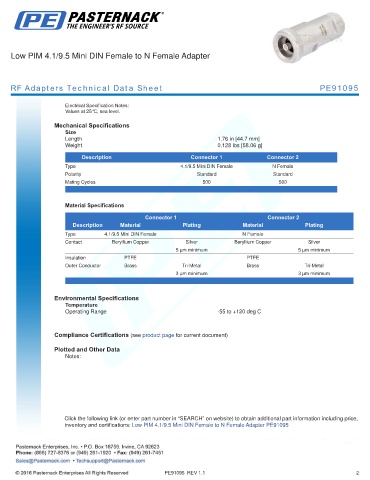

Low PIM 4.1/9.5 Mini DIN Female to N Female Adapter
RF Adapters Technical Data Sheet PE91095
Electrical Specification Notes:
Values at 25°C, sea level.
Mechanical Specifications
Size
Length 1.76 in [44.7 mm]
Weight 0.128 lbs [58.06 g]
.
Description Connector 1 Connector 2
Type 4.1/9.5 Mini DIN Female N Female
Polarity Standard Standard
Mating Cycles 500 500
.
Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type 4.1/9.5 Mini DIN Female N Female
Contact Beryllium Copper Silver Beryllium Copper Silver
5 µm minimum 5 µm minimum
Insulation PTFE PTFE
Outer Conductor Brass Tri-Metal Brass Tri-Metal
3 µm minimum 3 µm minimum
. .
Environmental Specifications
Temperature
Operating Range -55 to +120 deg C
.
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Low PIM 4.1/9.5 Mini DIN Female to N Female Adapter PE91095
PE91095 REV 1.1 2
