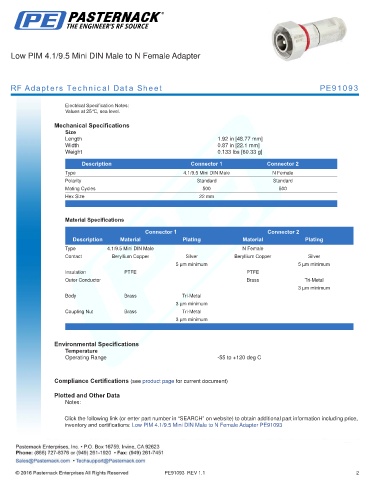

Low PIM 4.1/9.5 Mini DIN Male to N Female Adapter

RF Adapters Technical Data Sheet PE91093

Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 1.92 in [48.77 mm]
Width 0.87 in [22.1 mm]
Weight 0.133 lbs [60.33 g]
.
Description Connector 1 Connector 2
Type 4.1/9.5 Mini DIN Male N Female
Polarity Standard Standard
Mating Cycles 500 500
Hex Size 22 mm
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type 4.1/9.5 Mini DIN Male N Female
Contact Beryllium Copper Silver Beryllium Copper Silver
5 µm minimum 5 µm minimum
Insulation PTFE PTFE
Outer Conductor Brass Tri-Metal
3 µm minimum
Body Brass Tri-Metal
3 µm minimum
Coupling Nut Brass Tri-Metal
3 µm minimum
. .

Environmental Specifications
Temperature
Operating Range -55 to +120 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Low PIM 4.1/9.5 Mini DIN Male to N Female Adapter PE91093

PE91093 REV 1.1 2
