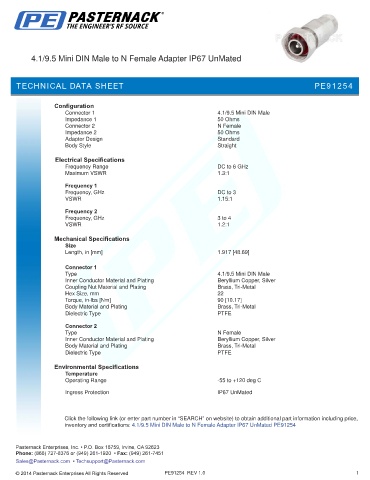

4.1/9.5 Mini DIN Male to N Female Adapter IP67 UnMated
TECHNICAL DATA SHEET PE91254
Configuration
Connector 1 4.1/9.5 Mini DIN Male
Impedance 1 50 Ohms
Connector 2 N Female
Impedance 2 50 Ohms
Adapter Design Standard
Body Style Straight
Electrical Specifications
Frequency Range DC to 6 GHz
Maximum VSWR 1.3:1
Frequency 1
Frequency, GHz DC to 3
VSWR 1.15:1
Frequency 2
Frequency, GHz 3 to 4
VSWR 1.2:1
Mechanical Specifications
Size
Length, in [mm] 1.917 [48.69]
.
Connector 1
Type 4.1/9.5 Mini DIN Male
Inner Conductor Material and Plating Beryllium Copper, Silver
Coupling Nut Material and Plating Brass, Tri-Metal
Hex Size, mm 22
Torque, in-lbs [Nm] 90 [10.17]
Body Material and Plating Brass, Tri-Metal
Dielectric Type PTFE
Connector 2
Type N Female
Inner Conductor Material and Plating Beryllium Copper, Silver
Body Material and Plating Brass, Tri-Metal
Dielectric Type PTFE
Environmental Specifications
Temperature
Operating Range -55 to +120 deg C
Ingress Protection IP67 UnMated
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 4.1/9.5 Mini DIN Male to N Female Adapter IP67 UnMated PE91254
PE91254 REV 1.0 1
