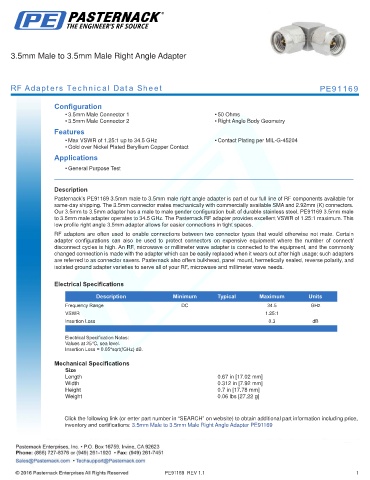

3.5mm Male to 3.5mm Male Right Angle Adapter

RF Adapters Technical Data Sheet PE91169

Configuration
• 3.5mm Male Connector 1 • 50 Ohms
• 3.5mm Male Connector 2 • Right Angle Body Geometry
Features
• Max VSWR of 1.25:1 up to 34.5 GHz • Contact Plating per MIL-G-45204
• Gold over Nickel Plated Beryllium Copper Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE91169 3.5mm male to 3.5mm male right angle adapter is part of our full line of RF components available for
same-day shipping. The 3.5mm connector mates mechanically with commercially available SMA and 2.92mm (K) connectors.
Our 3.5mm to 3.5mm adapter has a male to male gender configuration built of durable stainless steel. PE91169 3.5mm male
to 3.5mm male adapter operates to 34.5 GHz. The Pasternack RF adapter provides excellent VSWR of 1.25:1 maximum. This
low profile right angle 3.5mm adapter allows for easier connections in tight spaces.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 34.5 GHz
VSWR 1.25:1
Insertion Loss 0.3 dB
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Insertion Loss = 0.05*sqrt(fGHz) dB.

Mechanical Specifications
Size
Length 0.67 in [17.02 mm]
Width 0.312 in [7.92 mm]
Height 0.7 in [17.78 mm]
Weight 0.06 lbs [27.22 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 3.5mm Male to 3.5mm Male Right Angle Adapter PE91169

PE91169 REV 1.1 1
