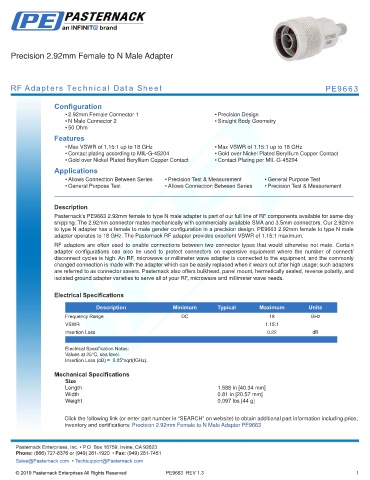

Precision 2.92mm Female to N Male Adapter
RF Adapters Technical Data Sheet PE9663
Configuration
• 2.92mm Female Connector 1 • Precision Design
• N Male Connector 2 • Straight Body Geometry
• 50 Ohm
Features
• Max VSWR of 1.15:1 up to 18 GHz • Max VSWR of 1.15:1 up to 18 GHz
• Contact plating according to MIL-G-45204 • Gold over Nickel Plated Beryllium Copper Contact
• Gold over Nickel Plated Beryllium Copper Contact • Contact Plating per MIL-G-45204
Applications
• Allows Connection Between Series • Precision Test & Measurement • General Purpose Test
• General Purpose Test • Allows Connection Between Series • Precision Test & Measurement
.
Description
Pasternack’s PE9663 2.92mm female to type N male adapter is part of our full line of RF components available for same-day
shipping. The 2.92mm connector mates mechanically with commercially available SMA and 3.5mm connectors. Our 2.92mm
to type N adapter has a female to male gender configuration in a precision design. PE9663 2.92mm female to type N male
adapter operates to 18 GHz. The Pasternack RF adapter provides excellent VSWR of 1.15:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.15:1
Insertion Loss 0.22 dB
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Insertion Loss (dB) = 0.05*sqrt(fGHz).
Mechanical Specifications
Size
Length 1.588 in [40.34 mm]
Width 0.81 in [20.57 mm]
Weight 0.097 lbs [44 g]
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision 2.92mm Female to N Male Adapter PE9663
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE9663 REV 1.3 1
