2.92mm Male to 2.4mm Male Adapter

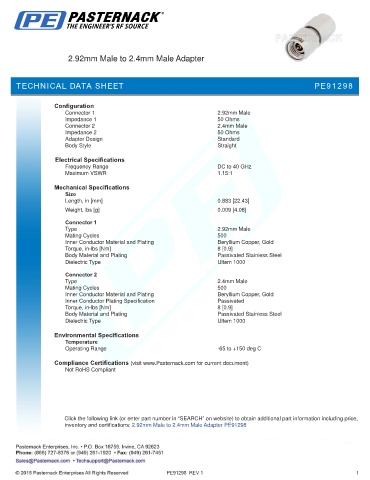

TECHNICAL DATA SHEET PE91298

Configuration
Connector 1 2.92mm Male
Impedance 1 50 Ohms
Connector 2 2.4mm Male
Impedance 2 50 Ohms
Adapter Design Standard
Body Style Straight

Electrical Specifications
Frequency Range DC to 40 GHz
Maximum VSWR 1.15:1

Mechanical Specifications
Size
Length, in [mm] 0.883 [22.43]
.
Weight, lbs [g] 0.009 [4.08]
Connector 1
Type 2.92mm Male
Mating Cycles 500
Inner Conductor Material and Plating Beryllium Copper, Gold
Torque, in-lbs [Nm] 8 [0.9]
Body Material and Plating Passivated Stainless Steel
Dielectric Type Ultem 1000

Connector 2
Type 2.4mm Male
Mating Cycles 500
Inner Conductor Material and Plating Beryllium Copper, Gold
Inner Conductor Plating Specification Passivated
Torque, in-lbs [Nm] 8 [0.9]
Body Material and Plating Passivated Stainless Steel
Dielectric Type Ultem 1000

Environmental Specifications
Temperature
Operating Range -65 to +150 deg C

Compliance Certifications (visit www.Pasternack.com for current document)
Not RoHS Compliant

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 2.92mm Male to 2.4mm Male Adapter PE91298
