2.92mm Male to 1.85mm Female Adapter

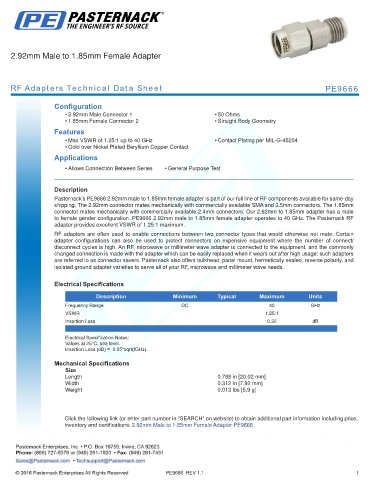

RF Adapters Technical Data Sheet PE9666

Configuration
• 2.92mm Male Connector 1 • 50 Ohms
• 1.85mm Female Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.25:1 up to 40 GHz • Contact Plating per MIL-G-45204
• Gold over Nickel Plated Beryllium Copper Contact
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9666 2.92mm male to 1.85mm female adapter is part of our full line of RF components available for same-day
shipping. The 2.92mm connector mates mechanically with commercially available SMA and 3.5mm connectors. The 1.85mm
connector mates mechanically with commercially available 2.4mm connectors. Our 2.92mm to 1.85mm adapter has a male
to female gender configuration. PE9666 2.92mm male to 1.85mm female adapter operates to 40 GHz. The Pasternack RF
adapter provides excellent VSWR of 1.25:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 40 GHz
VSWR 1.25:1
Insertion Loss 0.32 dB
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Insertion Loss (dB) = 0.05*sqrt(fGHz).

Mechanical Specifications
Size
Length 0.788 in [20.02 mm]
Width 0.312 in [7.92 mm]
Weight 0.013 lbs [5.9 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 2.92mm Male to 1.85mm Female Adapter PE9666

PE9666 REV 1.1 1
