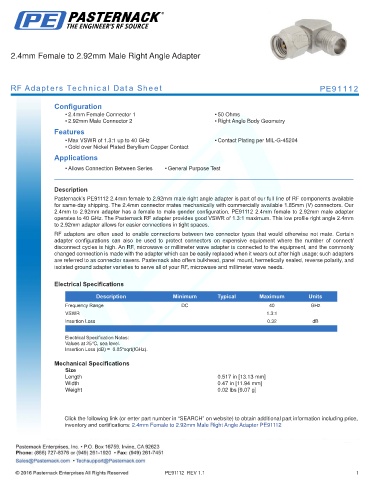

2.4mm Female to 2.92mm Male Right Angle Adapter

RF Adapters Technical Data Sheet PE91112

Configuration
• 2.4mm Female Connector 1 • 50 Ohms
• 2.92mm Male Connector 2 • Right Angle Body Geometry
Features
• Max VSWR of 1.3:1 up to 40 GHz • Contact Plating per MIL-G-45204
• Gold over Nickel Plated Beryllium Copper Contact
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE91112 2.4mm female to 2.92mm male right angle adapter is part of our full line of RF components available
for same-day shipping. The 2.4mm connector mates mechanically with commercially available 1.85mm (V) connectors. Our
2.4mm to 2.92mm adapter has a female to male gender configuration. PE91112 2.4mm female to 2.92mm male adapter
operates to 40 GHz. The Pasternack RF adapter provides good VSWR of 1.3:1 maximum. This low profile right angle 2.4mm
to 2.92mm adapter allows for easier connections in tight spaces.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 40 GHz
VSWR 1.3:1
Insertion Loss 0.32 dB
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Insertion Loss (dB) = 0.05*sqrt(fGHz).

Mechanical Specifications
Size
Length 0.517 in [13.13 mm]
Width 0.47 in [11.94 mm]
Weight 0.02 lbs [9.07 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 2.4mm Female to 2.92mm Male Right Angle Adapter PE91112

PE91112 REV 1.1 1
