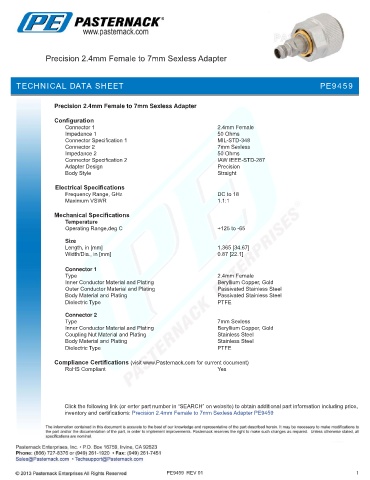

Precision 2.4mm Female to 7mm Sexless Adapter
TECHNICAL DATA SHEET PE9459
Precision 2.4mm Female to 7mm Sexless Adapter
Configuration
Connector 1 2.4mm Female
Impedance 1 50 Ohms
Connector Specification 1 MIL-STD-348
Connector 2 7mm Sexless
Impedance 2 50 Ohms
Connector Specification 2 IAW IEEE-STD-287
Adapter Design Precision
Body Style Straight
Electrical Specifications
Frequency Range, GHz DC to 18
Maximum VSWR 1.1:1
Mechanical Specifications
Temperature
Operating Range,deg C +125 to -65
Size
Length, in [mm] 1.365 [34.67]
Width/Dia., in [mm] 0.87 [22.1]
.
Connector 1
Type 2.4mm Female
Inner Conductor Material and Plating Beryllium Copper, Gold
Outer Conductor Material and Plating Passivated Stainless Steel
Body Material and Plating Passivated Stainless Steel
Dielectric Type PTFE
Connector 2
Type 7mm Sexless
Inner Conductor Material and Plating Beryllium Copper, Gold
Coupling Nut Material and Plating Stainless Steel
Body Material and Plating Stainless Steel
Dielectric Type PTFE
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision 2.4mm Female to 7mm Sexless Adapter PE9459
PE9459 REV 01 1
