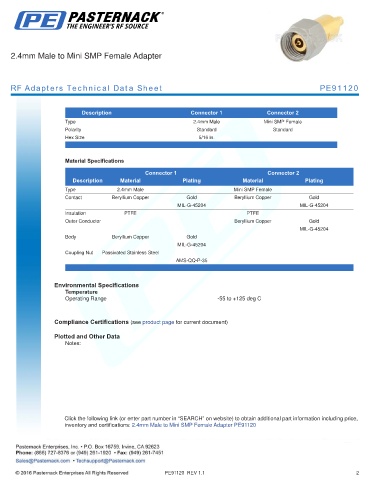

2.4mm Male to Mini SMP Female Adapter

RF Adapters Technical Data Sheet PE91120

.
Description Connector 1 Connector 2
Type 2.4mm Male Mini SMP Female
Polarity Standard Standard
Hex Size 5/16 in.
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type 2.4mm Male Mini SMP Female
Contact Beryllium Copper Gold Beryllium Copper Gold
MIL-G-45204 MIL-G-45204
Insulation PTFE PTFE
Outer Conductor Beryllium Copper Gold
MIL-G-45204
Body Beryllium Copper Gold
MIL-G-45204
Coupling Nut Passivated Stainless Steel
AMS-QQ-P-35
. .

Environmental Specifications
Temperature
Operating Range -55 to +125 deg C
.

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 2.4mm Male to Mini SMP Female Adapter PE91120

PE91120 REV 1.1 2
