Page 14 - RF Adapter Datasheets

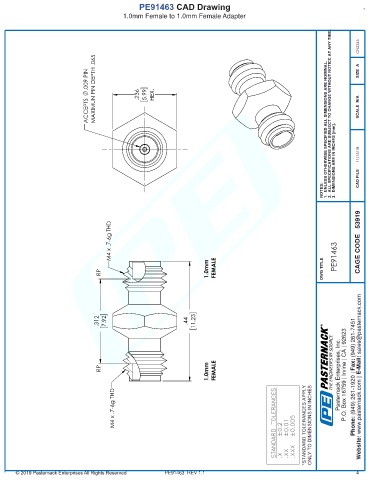

PE91463 CAD Drawing
1.0mm Female to 1.0mm Female Adapter



     SIZE A

 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOU T NOTICE AT ANY TIME. SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 

NOTES: CAD FILE

 CAGE CODE 53919

  DWG TITLE 





    R

 E-Mail: sales@pasternack.com

 Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451
 

*STANDARD TOLERANCES APPLY
ONLY TO DIMENSIONS IN INCHES

 Website: www.pasternack.com |




Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation. -

PE91463 REV 1.1 4
