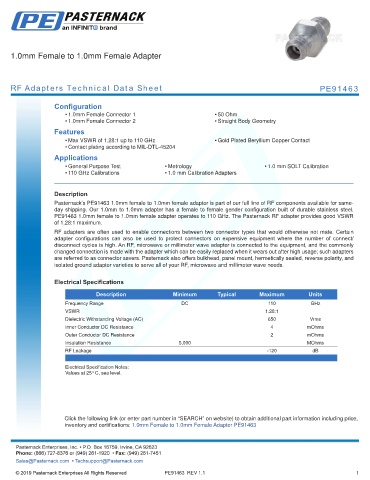

1.0mm Female to 1.0mm Female Adapter

RF Adapters Technical Data Sheet PE91463

Configuration
• 1.0mm Female Connector 1 • 50 Ohm
• 1.0mm Female Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.28:1 up to 110 GHz • Gold Plated Beryllium Copper Contact
• Contact plating according to MIL-DTL-45204
Applications
• General Purpose Test • Metrology • 1.0 mm SOLT Calibration
• 110 GHz Calibrations • 1.0 mm Calibration Adapters
.
Description
Pasternack’s PE91463 1.0mm female to 1.0mm female adapter is part of our full line of RF components available for same-
day shipping. Our 1.0mm to 1.0mm adapter has a female to female gender configuration built of durable stainless steel.
PE91463 1.0mm female to 1.0mm female adapter operates to 110 GHz. The Pasternack RF adapter provides good VSWR
of 1.28:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 110 GHz
VSWR 1.28:1
Dielectric Withstanding Voltage (AC) 650 Vrms
Inner Conductor DC Resistance 4 mOhms
Outer Conductor DC Resistance 2 mOhms
Insulation Resistance 5,000 MOhms
RF Leakage -120 dB
. .
Electrical Specification Notes:
Values at 25° C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 1.0mm Female to 1.0mm Female Adapter PE91463
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE91463 REV 1.1 1
