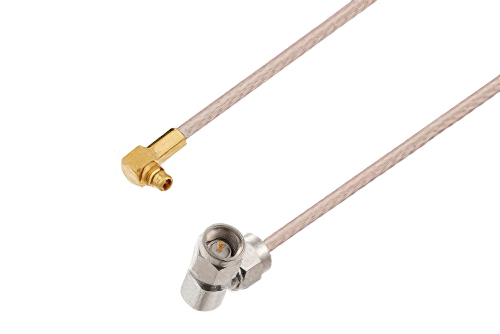

MMCX Plug Right Angle to SMA Male Right Angle Cable Using RG316 Coax
Product ID:
PE3W07894
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
Key Specifications
Key Specifications (Click on Data Sheet Above for Additional Details). |
Connector Series 1 | MMCX |
Connector Gender 1 | Plug |
Connector Polarity 1 | Standard |
Connector Angle 1 | Right Angle |
Connector Mount Method 1 | None |
Connector Impedance 1 | 50 Ohm |
Connector Series 2 | SMA |
Connector Gender 2 | Male |
Connector Polarity 2 | Standard |
Connector Angle 2 | Right Angle |
Connector Mount Method 2 | None |
Connector Impedance 2 | 50 Ohm |
RF Cable Part Number | RG316/U |
RF Cable Type | RG316 |
RF Cable Impedance | 50 Ohm |
Description
Click on the below images to access KitBOM product pages:
![](/images/product/medium/PE4898.jpg) | ![](/images/product/medium/RG316-U.jpg) | ![](/images/product/medium/PE4028.jpg) | ![](/images/webtools/configurator/kitbom_datasheets.png) |
---|
PE4898 | RG316/U | PE4028 | KitBOM Datasheet |
---|
MMCX Plug Right Angle to SMA Male Right Angle Cable Using RG316 Coax
PE3W07894 is a MMCX plug right angle to SMA male right angle cable using RG316 coax. This Pasternack MMCX plug right angle to SMA male right angle cable assembly uses a 50 Ohm MMCX for connector 1 and a 50 Ohm SMA for connector 2. MMCX right angle to SMA right angle coaxial cable assembly uses 90 degree right angle coax cable connector.
Our plug MMCX right angle to male SMA right angle cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W07894 MMCX plug right angle to SMA male right angle cable assembly is constructed with RG316 coax.
