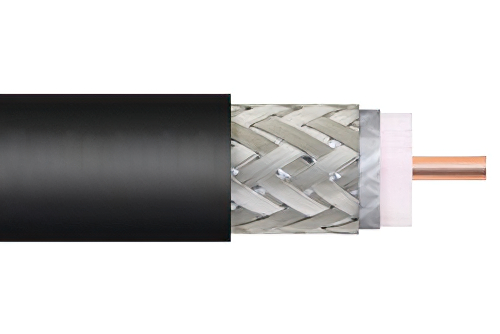

75 Ohm Low Loss Flexible LMR-400-75 Outdoor Rated Coax Cable Double Shielded with Black PE Jacket
Product ID:
LMR-400-75
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Generic Name | LMR-400 |
| Flex Type | Flexible |
| Impedance | 75 Ohm |
| Dielectric Type | PE (F) |
| Velocity of Propagation | 85 % |
| Jacket Diameter | 0.405 in |
| Jacket Material | PE |
| No. of Shields | 2 |
| RF Shielding | 90 dB |
| Frequency, Max | 2.5 GHz |
| Max Operating Temperature | 85 deg C |
| Center Conductor Type | Solid |
| Inner Conductor, Number of Strands | 1 |
| Minimum Bend Radius, One Time | 1 in |
| Minimum Bend Radius, Repeated | 4 in |
| Coax Type | Coax |
Description
75 Ohm Low Loss Flexible LMR-400-75 Outdoor Rated Coax Cable Double Shielded with Black PE Jacket
LMR-400-75 part number from Pasternack is a LMR-400 coax cable that is flexible. Pasternack LMR-400-75 flexible coax cable is 75 Ohm and has a PE (F) dielectric. Our LMR-400-75 coax is constructed with a 0.405 jacket made of PE. LMR-400-75 coax has a shield count of 2, a RF shielding of 90 dB and the maximum frequency for this Pasternack cable is 2.5 GHz.
Pasternack LMR-400 coax cables are part of over 40,000 RF, microwave and millimeter wave components. LMR-400-75 cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using LMR-400-75 or other coax can be built and shipped same day as well.
* LMR™ is a trademark of Times Microwave Systems.
Tariff Surcharge
Section 301 USTR Import Tariff related to this product. This product may have a surcharge if the product is shipped to an address within the United States. This surcharge will be finalized after the Shipping Address information is entered on the Check Out page.
