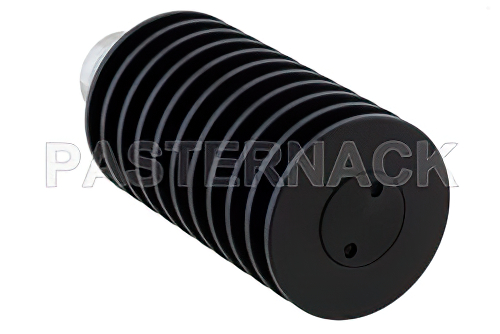

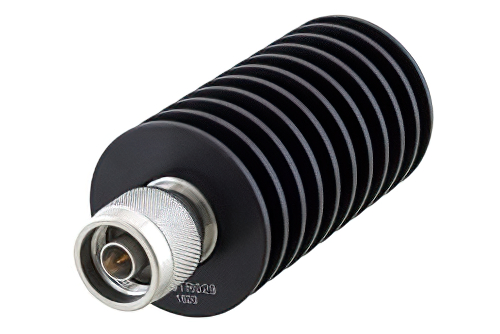

50 Watt RF Load Up to 8.5 GHz with N Male Black Anodized Aluminum Heatsink
Product ID:
PE6TR029
Pricing
| Quantity | Price |
| 1-9 | $447.99 |
| 10-24 | $439.03 |
| 25-99 | $430.07 |
| 100+ | Call Us |
* All Prices are in US Dollars and do not include duties
Buy
Available Quantity: 68
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Termination Type | RF Load |
| Connector Series | N |
| Connector Gender | Male |
| Minimum Frequency | DC |
| Maximum Frequency | 8.5 GHz |
| Impedance | 50 Ohm |
| Maximum VSWR | 1.3:1 |
| Maximum Power | 50 Watt |
Description
50 Watt RF Load Up to 8.5 GHz with N Male Black Anodized Aluminum Heatsink
PE6TR029 50 Watts RF load (also known as termination or dummy load) has a type N connector that is male. This Pasternack 50 watts type N male load / termination is rated for a maximum frequency of 8.5 GHz. Our N type male termination load is a rf load termination with a 50 Ohm impedance.
This type N load / coax terminator is manufactured with no chain and passivated stainless steel body. Pasternack 50 Ohm type N coaxial termination / load is RoHS compliant and has an average maximum VSWR of 1.3:1. PE6TR029 50 watts type N male load termination is one of over 40,000 RF, microwave and millimeter wave components in-stock at Pasternack. Our N type male 50 watts termination load will ship worldwide the same day as purchased.
Tariff Surcharge
Section 301 USTR Import Tariff related to this product. This product may have a surcharge if the product is shipped to an address within the United States. This surcharge will be finalized after the Shipping Address information is entered on the Check Out page.
