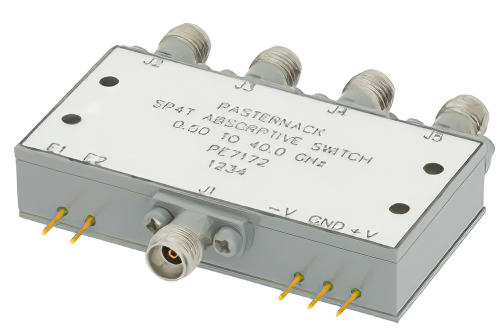

2.92mm SP4T PIN Diode Switch Operating From 500 MHz to 40 GHz Up To +20 dBm

PE7172 PIN diode switch from Pasternack is a Absorptive design. Our RF Absorptive PIN diode switch uses 2.92mm connectors at 50 Ohm. This 2.92mm PIN diode Absorptive switch has a minimum frequency of 500 MHz and a maximum frequency of 40 GHz. The Pasternack PIN diode Absorptive RF switch is rated at a switching speed of 15 ns and a maximum input power of 0.1 Watts (+20 dBm ).

Insertion loss maximum of this 2.92mm Absorptive switch is 8 dB with an isolation minimum of 55 dB. Absorptive PIN diode radio frequency switch PE7172 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our Absorptive 2.92mm coaxial PIN diode switch can ship worldwide the same day that it is bought as with our other available RF parts.
