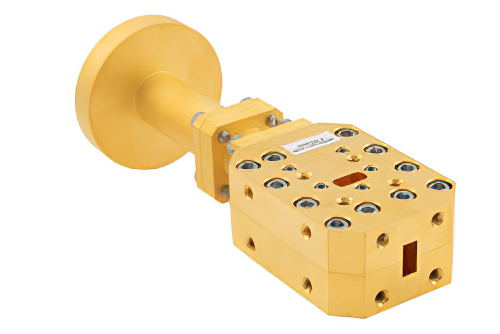

WR-28 Waveguide Dual Polarized Feed Horn Antenna, 24 GHz to 42 GHz Frequency Range, 10 dBi Gain, UG-599/U Flange
Product ID:
PEWAN1142
Pricing
Quantity | Price |
1-4 | $5,714.29 |
5-9 | $5,600.00 |
10-24 | $5,485.72 |
25-99 | $5,371.43 |
100+ | Call Us |
* All Prices are in US Dollars and do not include duties
Buy
Available Quantity: 2
![Shipping Truck](/App_Themes/Skin_3/Content/images/SVGs/icon-truck.svg)
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties
Key Specifications
Key Specifications (Click on Data Sheet Above for Additional Details). |
Waveguide Size | WR-28 |
Frequency, Min | 24 GHz |
Frequency, Max | 42 GHz |
Beam Width V | 60 |
Beam Width H | 60 |
Description
WR-28 Waveguide Dual Polarized Feed Horn Antenna, 24 GHz to 42 GHz Frequency Range, 10 dBi Gain, UG-599/U Flange
PEWAN1142 WR-28 dual polarized feed horn gain horn antenna is also known as a waveguide horn. This WR-28 dual polarized feed horn gain horn antenna has a 10 dBi nominal gain and a square choke flange. Our 10 dBi WR28 horn antenna has a minimum frequency of 24 GHz and a maximum frequency of 42 GHz.
WR 28 dual polarized feed horn gain horn waveguide antenna PEWAN1142 has a vertical beam width of 60 and horizontal of 60 degrees at 3 dB. This WR28 dual polarized feed horn gain horn antenna with 10 dBi is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-28 waveguide horn antenna can ship worldwide the same day as it is purchased as with our other available RF parts.
