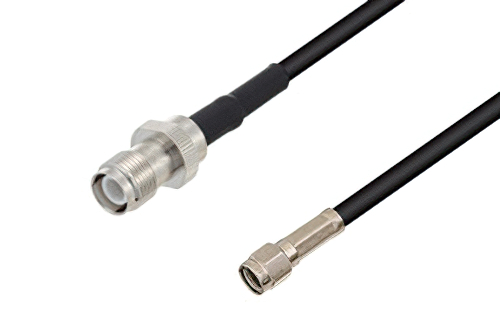

Reverse Polarity TNC Female to Reverse Polarity SMA Male Cable Using 53 Ohm RG55 Coax
Product ID:
PE3W07647
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
Key Specifications
Key Specifications (Click on Data Sheet Above for Additional Details). |
Connector Series 1 | TNC |
Connector Gender 1 | Female |
Connector Polarity 1 | Reverse Polarity |
Connector Angle 1 | Straight |
Connector Mount Method 1 | None |
Connector Impedance 1 | 50 Ohm |
Connector Series 2 | SMA |
Connector Gender 2 | Male |
Connector Polarity 2 | Reverse Polarity |
Connector Angle 2 | Straight |
Connector Mount Method 2 | None |
Connector Impedance 2 | 50 Ohm |
RF Cable Part Number | RG55B/U |
RF Cable Type | RG55 |
RF Cable Impedance | 53 Ohm |
Description
Click on the below images to access KitBOM product pages:
![](/images/product/medium/PE4685.jpg) | ![](/images/product/medium/RG55B-U.jpg) | ![](/images/product/medium/PE4767.jpg) | ![](/images/webtools/configurator/kitbom_datasheets.png) |
---|
PE4685 | RG55B/U | PE4767 | KitBOM Datasheet |
---|
Reverse Polarity TNC Female to Reverse Polarity SMA Male Cable Using 53 Ohm RG55 Coax
PE3W07647 is a reverse polarity TNC female to reverse polarity SMA male cable using RG55 coax. This Pasternack reverse polarity TNC female to reverse polarity SMA male cable assembly uses a 50 Ohm TNC for connector 1 and a 50 Ohm SMA for connector 2.
Our reverse polarity female TNC to reverse polarity male SMA cable assembly uses a flexible cable type that is 53 Ohm. Pasternack PE3W07647 TNC reverse polarity female to SMA reverse polarity male cable assembly is constructed with RG55 coax.
