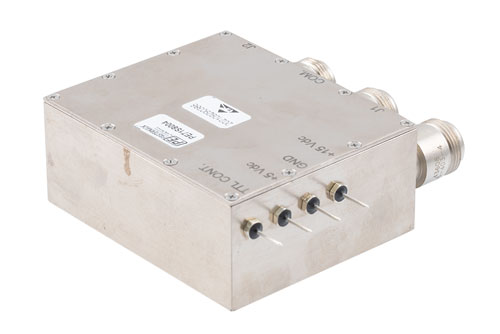

PE71S8004 PIN diode switch from Pasternack is a Absorptive design. Our RF Absorptive PIN diode switch uses N connectors at 50 Ohm. This N PIN diode Absorptive switch has a minimum frequency of 100 MHz and a maximum frequency of 500 MHz. The Pasternack PIN diode Absorptive RF switch is rated at a switching speed of 40,000 ns and a maximum input power of 100 Watts (+50 dBm ).
Insertion loss maximum of this N Absorptive switch is 0.5 dB with an isolation minimum of 55 dB. Absorptive PIN diode radio frequency switch PE71S8004 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our Absorptive N coaxial PIN diode switch can ship worldwide the same day that it is bought as with our other available RF parts.
