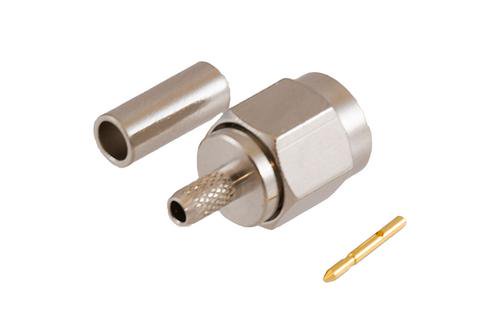

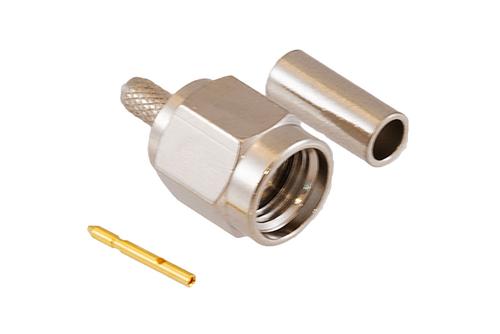

PE4003 SMA male coaxial connector has an interface type of SMA male RG174, RG316, RG188, LMR-100, PE-B100, PE-C100, and .100 inch and a 50 Ohm impedance. Pasternack's SMA male connector uses crimp/solder as an attachment method. Our male SMA coaxial connector provides a maximum frequency of 12.4 GHz.
The Pasternack SMA male coaxial connector has a PTFE dielectric type and a VSWR of 1.21:1. Pasternack's SMA coaxial connector has a brass body with nickel plating. Our PE4003 SMA connector uses a gold-plated brass contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
Our high-quality PE4003 features a 100 µin minimum body plating specification. The Pasternack PE4003 SMA connector operates at a temperature range of -65 to 165 deg C.
This Pasternack male SMA connector will ship the same business day as purchased. Our SMA male connector is part of over 40,000 RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
*LMR™ is a Trademark of Times Microwave
