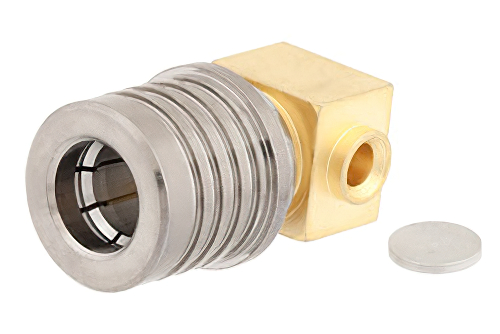

QMA Male Right Angle Connector Solder Attachment For PE-SR405AL, PE-SR405FL, RG405

Product ID: PE44497

Pricing

QuantityPrice
1-24$26.99
25-49$25.64
50-99$24.29
100-249$23.21
250+Call Us

* All Prices are in US Dollars and do not include duties

Buy

Available Quantity: 39
Shipping Truck
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesQMA
Connector GenderMale
Impedance50 Ohm
Body StyleRight Angle
Attachment MethodSolder/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency6 GHz
Interface Type 1PE-SR405AL
Interface Type 2PE-SR405FL
Interface Type 3RG405

Description

QMA Male Right Angle Connector Solder Attachment For PE-SR405AL, PE-SR405FL, RG405

PE44497 QMA male right angle coaxial connector has an interface type of PE-SR405AL, PE-SR405FL, RG405 and a 50 Ohm impedance. Pasternack QMA male connector uses shield/contact solder/solder as an attachment method. Our male QMA right angle coaxial connector provides a minimum frequency of DC and a maximum frequency of 6 GHz.

The Pasternack right angle QMA male coaxial connector has a PTFE dielectric type and a VSWR of 1.25. The Pasternack QMA coaxial connector has a brass body with gold plating. Our PE44497 QMAright angle connector uses brass contact. This QMA male right angle coaxial RF connector is RoHS and REACH compliant.

This Pasternack right angle male QMA connector will ship the same day as purchased. Our QMA right angle male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom QMA connector cable assemblies that will ship the same day as well.
